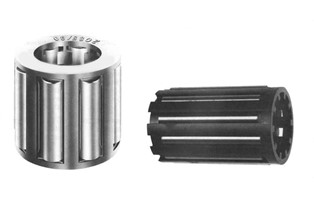

K Serisi (Polyamid Kafes)
K Serisi (Polyamid Kafes)
Ürün Kodu: Cam Bilyeler
HIZLI TEKLİF & ÖLÇÜ SEÇİMİ
822 Ölçü
İsterseniz tablodan da doğrudan inceleyip ekleyebilirsiniz.
Modellerin Kısa Adları:
RoW/K = Sertleştirilmemiş pimleri ile plastik kafes
RoH/K = Sertleştirilmiş pimleri ile plastik kafes
RoN/K = Paslanmaz çelik pimler ile plastik kafes
RoW/K = Sertleştirilmemiş pimleri ile plastik kafes
RoH/K = Sertleştirilmiş pimleri ile plastik kafes
RoN/K = Paslanmaz çelik pimler ile plastik kafes
| KAMA TİPİ* |

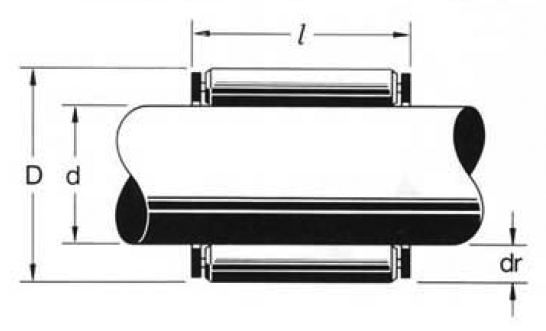

mm cinsinden Ölçüler | Gereken minimum uzunluk |
Masura uygulaması için kg cinsinden mukavemet Cdyn |
Hesaplamalar için varsayılan uzunluk |
Adet | Sepete Ekle | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| d | D | dr | I | KG | LBS | I | ||||
| 814 | 8 | 14 | 3 | 10 | 120 | 575 | 40 | - | ||
| 816 | 8 | 16 | 4 | 10 | 160 | 770 | 40 | - | ||
| 1016 | 10 | 16 | 3 | 10 | 170 | 815 | 40 | - | ||
| 1018 | 10 | 18 | 4 | 10 | 165 | 790 | 40 | - | ||
| 1020 | 10 | 20 | 5 | 10 | 205 | 985 | 40 | - | ||
| 1022 | 10 | 22 | 6 | 10 | 250 | 1200 | 40 | - | ||
| 1025 | 10 | 25 | 7,5 | 20 | 280 | 1345 | 40 | - | ||
| 1030 | 10 | 30 | 10 | 20 | 300 | 1440 | 40 | - | ||
| 1220 | 12 | 20 | 4 | 10 | 210 | 1010 | 40 | - | ||
| 1222 | 12 | 22 | 5 | 10 | 230 | 1105 | 40 | - | ||
| 1223 | 12 | 23 | 5,5 | 10 | 255 | 1225 | 40 | - | ||
| 1224 | 12 | 24 | 6 | 10 | 250 | 1200 | 40 | - | ||
| 1227 | 12 | 27 | 7,5 | 20 | 280 | 1345 | 40 | - | ||
| 1232 | 12 | 32 | 10 | 20 | 300 | 1440 | 40 | - | ||
| 1323 | 13 | 23 | 5 | 10 | 230 | 1105 | 40 | - | ||
| 1324 | 13 | 24 | 5,5 | 10 | 255 | 1225 | 40 | - | ||
| 1422 | 14 | 22 | 4 | 10 | 230 | 1105 | 40 | - | ||
| 1424 | 14 | 24 | 5 | 10 | 235 | 1130 | 40 | - | ||
| 1426 | 14 | 26 | 6 | 10 | 310 | 1485 | 40 | - | ||
| 1429 | 14 | 29 | 7,5 | 20 | 280 | 1345 | 40 | - | ||
| 1434 | 14 | 34 | 10 | 20 | 300 | 1440 | 40 | - | ||
| 1523 | 15 | 23 | 4 | 10 | 230 | 1105 | 40 | - | ||
| 1525 | 15 | 25 | 5 | 10 | 265 | 1270 | 40 | - | ||
| 1526 | 15 | 26 | 5,5 | 10 | 290 | 1390 | 40 | - | ||
| 1527 | 15 | 27 | 6 | 10 | 280 | 1345 | 40 | - | ||
| 1530 | 15 | 30 | 7,5 | 20 | 315 | 1510 | 40 | - | ||
| 1535 | 12 | 35 | 10 | 20 | 380 | 1825 | 40 | - | ||
| 1624 | 16 | 24 | 4 | 10 | 250 | 1250 | 40 | - | ||
| 1626 | 16 | 26 | 5 | 10 | 290 | 1390 | 40 | - | ||
| 1627 | 16 | 27 | 5,5 | 10 | 315 | 1510 | 40 | - | ||
| 1628 | 16 | 28 | 6 | 10 | 315 | 1510 | 40 | - | ||
| 1630 | 16 | 30 | 7 | 10 | 295 | 1415 | 40 | - | ||
| 1631 | 16 | 31 | 7,5 | 20 | 330 | 1585 | 40 | - | ||
| 1636 | 16 | 36 | 10 | 20 | 380 | 1415 | 40 | - | ||
| 1727 | 17 | 27 | 5 | 10 | 265 | 1270 | 40 | - | ||
| 1728 | 17 | 28 | 5,5 | 10 | 295 | 1415 | 40 | - | ||
| 1828 | 18 | 28 | 5 | 10 | 260 | 1250 | 40 | - | ||
| 1829 | 18 | 29 | 5,5 | 10 | 290 | 1390 | 40 | - | ||
| 1830 | 18 | 30 | 6 | 10 | 310 | 1490 | 40 | - | ||
| 1831 | 18 | 31 | 7,5 | 20 | 330 | 1585 | 40 | - | ||
| 1836 | 18 | 36 | 10 | 20 | 380 | 1825 | 40 | - | ||
| 1929 | 19 | 29 | 5 | 20 | 295 | 1415 | 40 | - | ||
| 1930 | 19 | 30 | 5,5 | 20 | 355 | 1705 | 40 | - | ||
| 1931 | 19 | 31 | 6 | 20 | 380 | 1825 | 40 | - | ||
| 2030 | 20 | 30 | 5 | 20 | 395 | 1895 | 50 | - | ||
| 2032 | 20 | 32 | 6 | 20 | 430 | 2065 | 50 | - | ||
| 3035 | 20 | 35 | 7,5 | 20 | 490 | 2350 | 50 | - | ||
| 2036 | 20 | 36 | 8 | 20 | 530 | 2545 | 50 | - | ||
| 2037 | 20 | 37 | 8,5 | 20 | 555 | 2665 | 50 | - | ||
| 2040 | 20 | 40 | 10 | 20 | 530 | 2545 | 50 | - | ||
| 2041 | 20 | 41 | 10,5 | 20 | 540 | 2590 | 50 | - | ||
| 2232 | 22 | 32 | 5 | 20 | 450 | 2160 | 50 | - | ||
| 2233 | 22 | 33 | 5,5 | 20 | 400 | 1920 | 50 | - | ||
| 2234 | 22 | 34 | 6 | 20 | 435 | 2090 | 50 | - | ||
| 2235 | 22 | 35 | 6,5 | 20 | 475 | 2280 | 50 | - | ||
| 2237 | 22 | 37 | 7,5 | 20 | 540 | 2590 | 50 | - | ||
| 2238 | 22 | 38 | 8 | 20 | 550 | 2640 | 50 | - | ||
| 2242 | 22 | 42 | 10 | 20 | 560 | 2690 | 50 | - | ||
| 2434 | 24 | 34 | 5 | 20 | 450 | 2160 | 50 | - | ||
| 2435 | 24 | 35 | 5,5 | 20 | 500 | 2400 | 50 | - | ||
| 2436 | 24 | 36 | 6 | 20 | 440 | 2110 | 50 | - | ||
| 2437 | 24 | 37 | 6,5 | 20 | 475 | 2280 | 50 | - | ||
| 2439 | 24 | 39 | 7,5 | 20 | 545 | 2615 | 50 | - | ||
| 2444 | 24 | 44 | 10 | 20 | 660 | 3170 | 50 | - | ||
| 2535 | 25 | 35 | 5 | 20 | 450 | 2160 | 50 | - | ||
| 2536 | 25 | 36 | 5,5 | 20 | 500 | 2400 | 50 | - | ||
| 2537 | 25 | 37 | 6 | 20 | 480 | 2305 | 50 | - | ||
| 2538 | 25 | 38 | 6,5 | 20 | 525 | 2520 | 50 | - | ||
| 2539 | 25 | 39 | 7 | 20 | 535 | 2590 | 50 | - | ||
| 2540 | 25 | 40 | 7,5 | 20 | 545 | 2615 | 50 | - | ||
| 2541 | 25 | 41 | 8 | 20 | 585 | 2810 | 50 | - | ||
| 2545 | 25 | 45 | 10 | 30 | 670 | 3215 | 50 | - | ||
| 2550 | 25 | 50 | 12,5 | 30 | 750 | 3600 | 50 | - | ||
| 2555 | 25 | 55 | 15 | 40 | 770 | 3695 | 50 | - | ||
| 2636 | 26 | 36 | 5 | 20 | 450 | 2160 | 50 | - | ||
| 2637 | 26 | 37 | 5,5 | 20 | 500 | 2400 | 50 | - | ||
| 2638 | 26 | 38 | 6 | 20 | 515 | 2470 | 50 | - | ||
| 2641 | 26 | 41 | 7,5 | 30 | 530 | 2545 | 50 | - | ||
| 2646 | 26 | 46 | 10 | 30 | 550 | 2640 | 50 | - | ||
| 2737 | 27 | 37 | 5 | 20 | 580 | 2785 | 50 | - | ||
| 2739 | 27 | 39 | 6 | 20 | 610 | 2930 | 50 | - | ||
| 2740 | 27 | 40 | 6,5 | 30 | 600 | 2880 | 50 | - | ||
| 2742 | 27 | 42 | 7,5 | 30 | 630 | 3025 | 50 | - | ||
| 2747 | 27 | 47 | 10 | 30 | 730 | 3505 | 50 | - | ||
| 2838 | 28 | 38 | 5 | 20 | 500 | 2400 | 50 | - | ||
| 2840 | 28 | 40 | 6 | 20 | 550 | 2640 | 50 | - | ||
| 2843 | 28 | 43 | 7,5 | 30 | 570 | 2735 | 50 | - | ||
| 2844 | 28 | 44 | 8 | 30 | 580 | 2785 | 50 | - | ||
| 2848 | 28 | 48 | 10 | 30 | 630 | 3025 | 50 | - | ||
| 2940 | 29 | 40 | 5,5 | 20 | 660 | 3170 | 50 | - | ||
| 3040 | 30 | 40 | 5 | 20 | 510 | 2450 | 60 | - | ||
| 3041 | 30 | 41 | 5,5 | 20 | 575 | 2760 | 60 | - | ||
| 3042 | 30 | 42 | 6 | 20 | 630 | 3025 | 60 | - | ||
| 3043 | 30 | 43 | 6,5 | 30 | 690 | 3310 | 60 | - | ||
| 3044 | 30 | 44 | 7 | 30 | 775 | 3720 | 60 | - | ||
| 3045 | 30 | 45 | 7,5 | 30 | 800 | 3840 | 60 | - | ||
| 3046 | 30 | 46 | 8 | 30 | 750 | 3600 | 60 | - | ||
| 3047 | 30 | 47 | 8,5 | 30 | 795 | 3815 | 60 | - | ||
| 3048 | 30 | 48 | 9 | 30 | 835 | 4010 | 60 | - | ||
| 3050 | 30 | 50 | 10 | 30 | 845 | 4055 | 60 | - | ||
| 3052 | 30 | 52 | 11 | 30 | 930 | 4465 | 60 | - | ||
| 3055 | 30 | 55 | 12,5 | 30 | 950 | 4560 | 60 | - | ||
| 3060 | 30 | 60 | 15 | 30 | 970 | 4655 | 60 | - | ||
| 3150 | 31 | 50 | 9,5 | 30 | 800 | 3840 | 60 | - | ||
| 3244 | 32 | 44 | 6 | 30 | 700 | 3360 | 60 | - | ||
| 3245 | 32 | 45 | 6,5 | 30 | 690 | 3215 | 60 | - | ||
| 3247 | 32 | 47 | 7,5 | 30 | 800 | 3840 | 60 | - | ||
| 3248 | 32 | 48 | 8 | 30 | 755 | 3625 | 60 | - | ||
| 3250 | 32 | 50 | 9 | 30 | 900 | 4320 | 60 | - | ||
| 3252 | 32 | 52 | 10 | 30 | 850 | 4080 | 60 | - | ||
| 3345 | 33 | 45 | 6 | 30 | 630 | 3025 | 60 | - | ||
| 3346 | 33 | 46 | 6,5 | 30 | 690 | 3310 | 60 | - | ||
| 3347 | 33 | 47 | 7 | 30 | 745 | 3575 | 60 | - | ||
| 3349 | 33 | 49 | 8 | 30 | 810 | 3890 | 60 | - | ||
| 3447 | 34 | 47 | 6,5 | 30 | 820 | 3930 | 60 | - | ||
| 3545 | 35 | 45 | 5 | 30 | 590 | 2830 | 60 | - | ||
| 3547 | 35 | 47 | 6 | 30 | 730 | 3505 | 60 | - | ||
| 3548 | 35 | 48 | 6,5 | 30 | 690 | 3310 | 60 | - | ||
| 3549 | 35 | 49 | 7 | 30 | 830 | 3985 | 60 | - | ||
| 3550 | 35 | 50 | 7,5 | 30 | 800 | 3790 | 60 | - | ||
| 3551 | 35 | 51 | 8 | 30 | 860 | 4130 | 60 | - | ||
| 3554 | 35 | 54 | 9,5 | 30 | 810 | 3890 | 60 | - | ||
| 3555 | 35 | 55 | 10 | 30 | 945 | 4535 | 60 | - | ||
| 3560 | 35 | 60 | 12,5 | 40 | 1060 | 5090 | 60 | - | ||
| 3565 | 35 | 65 | 15 | 40 | 1100 | 5280 | 60 | - | ||
| 3648 | 36 | 48 | 6 | 30 | 690 | 3310 | 60 | - | ||
| 3651 | 36 | 51 | 7,5 | 30 | 720 | 3455 | 60 | - | ||
| 3652 | 36 | 52 | 8 | 30 | 810 | 3890 | 60 | - | ||
| 3656 | 36 | 56 | 10 | 30 | 850 | 4080 | 60 | - | ||
| 3661 | 36 | 61 | 12,5 | 40 | 950 | 4560 | 60 | - | ||
| 3666 | 36 | 66 | 15 | 40 | 1050 | 5040 | 60 | - | ||
| 3850 | 38 | 50 | 6 | 30 | 765 | 3670 | 60 | - | ||
| 3853 | 38 | 53 | 7,5 | 30 | 790 | 3790 | 60 | - | ||
| 3858 | 38 | 58 | 10 | 30 | 830 | 3985 | 60 | - | ||
| 3863 | 38 | 63 | 12,5 | 40 | 950 | 4560 | 60 | - | ||
| 3868 | 38 | 68 | 15 | 40 | 1050 | 5040 | 60 | - | ||
| 4050 | 40 | 50 | 5 | 30 | 725 | 3480 | 60 | - | ||
| 4051 | 40 | 51 | 5,5 | 30 | 735 | 3530 | 60 | - | ||
| 4052 | 40 | 52 | 6 | 30 | 755 | 3625 | 60 | - | ||
| 4054 | 40 | 54 | 7 | 30 | 825 | 3960 | 60 | - | ||
| 4055 | 40 | 55 | 7,5 | 30 | 890 | 4270 | 60 | - | ||
| 4056 | 40 | 56 | 8 | 30 | 900 | 4320 | 60 | - | ||
| 4057 | 40 | 57 | 8,5 | 30 | 965 | 4630 | 60 | - | ||
| 4058 | 40 | 58 | 9 | 30 | 1000 | 4750 | 60 | - | ||
| 4060 | 40 | 60 | 10 | 30 | 1090 | 5230 | 60 | - | ||
| 4065 | 40 | 65 | 12,5 | 30 | 1175 | 5640 | 60 | - | ||
| 4070 | 40 | 70 | 15 | 30 | 1305 | 6265 | 60 | - | ||
| 4254 | 42 | 54 | 6 | 30 | 810 | 3890 | 60 | - | ||
| 4257 | 42 | 57 | 7,5 | 30 | 890 | 4270 | 60 | - | ||
| 4262 | 42 | 62 | 10 | 30 | 1050 | 5040 | 60 | - | ||
| 4267 | 42 | 67 | 12,5 | 40 | 1100 | 5280 | 60 | - | ||
| 4272 | 42 | 72 | 15 | 40 | 1150 | 5520 | 60 | - | ||
| 4460 | 44 | 60 | 8 | 30 | 1015 | 4870 | 60 | - | ||
| 4557 | 45 | 57 | 6 | 30 | 885 | 4250 | 60 | - | ||
| 4560 | 45 | 60 | 75 | 30 | 970 | 4655 | 60 | - | ||
| 4561 | 45 | 61 | 8 | 30 | 1050 | 5040 | 60 | - | ||
| 4565 | 45 | 65 | 10 | 30 | 1090 | 5230 | 60 | - | ||
| 4570 | 45 | 70 | 12,5 | 40 | 1275 | 6120 | 60 | - | ||
| 4575 | 45 | 75 | 15 | 40 | 1315 | 6310 | 60 | - | ||
| 5062 | 50 | 62 | 6 | 30 | 990 | 4750 | 70 | - | ||
| 5065 | 50 | 65 | 7,5 | 30 | 1140 | 5470 | 70 | - | ||
| 5066 | 50 | 66 | 8 | 30 | 1250 | 6000 | 70 | - | ||
| 5070 | 50 | 70 | 10 | 30 | 1380 | 6625 | 70 | - | ||
| 5075 | 50 | 75 | 12,5 | 40 | 1560 | 7490 | 70 | - | ||
| 5078 | 50 | 78 | 14 | 40 | 1710 | 8210 | 70 | - | ||
| 5080 | 50 | 80 | 15 | 40 | 1760 | 8450 | 70 | - | ||
| 5165 | 51 | 65 | 7 | 30 | 1050 | 5040 | 70 | - | ||
| 5367 | 53 | 67 | 7 | 30 | 1100 | 5280 | 70 | - | ||
| 5369 | 53 | 69 | 8 | 30 | 1175 | 5640 | 70 | - | ||
| 55 67 | 55 | 67 | 6 | 30 | 1165 | 5590 | 70 | - | ||
| 55 70 | 55 | 70 | 7,5 | 30 | 1180 | 5665 | 70 | - | ||
| 55 71 | 55 | 71 | 8 | 30 | 1290 | 6190 | 70 | - | ||
| 55 75 | 55 | 75 | 10 | 30 | 1380 | 6625 | 70 | - | ||
| 55 80 | 55 | 80 | 12,5 | 40 | 1450 | 6960 | 70 | - | ||
| 55 85 | 55 | 85 | 15 | 40 | 1900 | 9120 | 70 | - | ||
| 59 81 | 59 | 81 | 11 | 40 | 1690 | 6190 | 70 | - | ||
| 60 72 | 60 | 72 | 6 | 30 | 1135 | 5450 | 70 | - | ||
| 60 73 | 60 | 73 | 6,5 | 30 | 1280 | 6145 | 70 | - | ||
| 60 75 | 60 | 75 | 7,5 | 30 | 1180 | 5665 | 70 | - | ||
| 60 76 | 60 | 76 | 8 | 30 | 1275 | 6120 | 70 | - | ||
| 60 80 | 60 | 80 | 10 | 30 | 1505 | 7225 | 70 | - | ||
| 60 85 | 60 | 85 | 12,5 | 40 | 1740 | 8350 | 70 | - | ||
| 60 90 | 60 | 90 | 15 | 40 | 1925 | 9240 | 70 | - | ||
| 60 95 | 60 | 95 | 17,5 | 40 | 1980 | 9500 | 70 | - | ||
| 61 85 | 61 | 85 | 12 | 40 | 1685 | 8090 | 70 | - | ||
| 62 86 | 62 | 86 | 12 | 40 | 1685 | 8090 | 70 | - | ||
| 64 80 | 64 | 80 | 8 | 30 | 1275 | 6120 | 70 | - | ||
| 65 77 | 65 | 77 | 6 | 30 | 1550 | 7440 | 70 | - | ||
| 65 80 | 65 | 80 | 7,5 | 30 | 1600 | 7680 | 70 | - | ||
| 65 85 | 65 | 85 | 10 | 30 | 1720 | 8255 | 70 | - | ||
| 65 90 | 65 | 90 | 12,5 | 40 | 1920 | 9215 | 70 | - | ||
| 65 95 | 65 | 95 | 15 | 40 | 1800 | 8640 | 70 | - | ||
| 70 82 | 70 | 82 | 6 | 30 | 1465 | 7030 | 80 | - | ||
| 70 85 | 70 | 85 | 7,5 | 30 | 1635 | 7450 | 80 | - | ||
| 70 90 | 70 | 90 | 10 | 30 | 1990 | 9550 | 80 | - | ||
| 70 95 | 70 | 95 | 12,5 | 40 | 2180 | 10465 | 80 | - | ||
| 70100 | 70 | 100 | 15 | 40 | 2435 | 11690 | 80 | - | ||
| 73 95 | 73 | 95 | 11 | 40 | 2220 | 10655 | 80 | - | ||
| 75 90 | 75 | 90 | 7,5 | 30 | 1595 | 7655 | 80 | - | ||
| 75 95 | 75 | 95 | 10 | 30 | 1900 | 9120 | 80 | - | ||
| 75100 | 75 | 100 | 12,5 | 40 | 2155 | 10345 | 80 | - | ||
| 75105 | 75 | 105 | 15 | 40 | 2690 | 12910 | 80 | - | ||
| 78 95 | 78 | 95 | 8,5 | 40 | 1935 | 9290 | 80 | - | ||
| 8095 | 80 | 95 | 7,5 | 30 | 1615 | 7750 | 80 | - | ||
| 80100 | 80 | 100 | 10 | 30 | 1975 | 9480 | 80 | - | ||
| 80104 | 80 | 104 | 12 | 30 | 2260 | 10850 | 80 | - | ||
| 80105 | 80 | 105 | 12,5 | 40 | 2355 | 11305 | 80 | - | ||
| 80110 | 80 | 110 | 15 | 40 | 2600 | 12480 | 80 | - | ||
| 80120 | 80 | 120 | 20 | 40 | 2955 | 14185 | 80 | - | ||
| 82106 | 82 | 106 | 12 | 30 | 2440 | 11710 | 80 | - | ||
| 85100 | 85 | 100 | 7,5 | 30 | 1660 | 7970 | 80 | - | ||
| 85105 | 85 | 105 | 10 | 30 | 2500 | 12000 | 80 | - | ||
| 85110 | 85 | 110 | 12,5 | 40 | 2340 | 11230 | 80 | - | ||
| 85115 | 85 | 115 | 15 | 40 | 2700 | 12960 | 80 | - | ||
| 90105 | 90 | 105 | 7,5 | 30 | 2400 | 11520 | 80 | - | ||
| 90110 | 90 | 110 | 10 | 30 | 2450 | 11760 | 80 | - | ||
| 90115 | 90 | 115 | 12,5 | 40 | 2550 | 12240 | 80 | - | ||
| 90120 | 90 | 120 | 15 | 40 | 2620 | 12575 | 80 | - | ||
| 95110 | 95 | 110 | 7,5 | 30 | 1885 | 9050 | 80 | - | ||
| 95115 | 95 | 115 | 10 | 30 | 2200 | 10560 | 80 | - | ||
| 95120 | 95 | 120 | 12,5 | 40 | 2450 | 11760 | 80 | - | ||
| 95125 | 95 | 125 | 15 | 40 | 2900 | 13920 | 80 | - | ||
| 100115 | 100 | 115 | 7,5 | 30 | 2290 | 10990 | 100 | - | ||
| 100120 | 100 | 120 | 10 | 30 | 2475 | 11880 | 100 | - | ||
| 100125 | 100 | 125 | 12,5 | 40 | 3540 | 16990 | 100 | - | ||
| 100130 | 100 | 130 | 15 | 40 | 3780 | 18145 | 100 | - | ||
| 100140 | 100 | 140 | 20 | 40 | 4220 | 20255 | 100 | - | ||
| 105120 | 105 | 120 | 7,5 | 40 | 2950 | 14160 | 100 | - | ||
| 110130 | 110 | 130 | 10 | 30 | 3900 | 18720 | 100 | - | ||
| 110140 | 110 | 140 | 15 | 40 | 4200 | 20160 | 100 | - | ||
| 110150 | 110 | 150 | 20 | 60 | 4420 | 21215 | 100 | - | ||
| 120140 | 120 | 140 | 10 | 30 | 4300 | 20640 | 100 | - | ||
| 120150 | 120 | 150 | 15 | 40 | 4720 | 22655 | 100 | - | ||
| 120160 | 120 | 160 | 20 | 60 | 4550 | 21840 | 100 | - | ||
| 130150 | 90 | 120 | 15 | 40 | 2620 | 12575 | 80 | - | ||
| 130160 | 130 | 160 | 15 | 40 | 5350 | 25680 | 100 | - | ||
| 130170 | 130 | 170 | 20 | 60 | 5420 | 26015 | 100 | - | ||
| 140160 | 140 | 160 | 10 | 40 | 3425 | 16440 | 100 | - | ||
| 140170 | 140 | 170 | 15 | 40 | 4250 | 20400 | 100 | - | ||
| 140180 | 140 | 180 | 20 | 60 | 5180 | 24865 | 100 | - | ||
| 150170 | 150 | 170 | 10 | 30 | 5250 | 25200 | 100 | - | ||
| 150190 | 150 | 190 | 20 | 60 | 5580 | 26785 | 100 | - | ||
| 160180 | 160 | 180 | 10 | 30 | 5500 | 26400 | 100 | - | ||
| 160200 | 160 | 200 | 20 | 60 | 5950 | 28560 | 100 | - | ||
| 170190 | 170 | 190 | 10 | 30 | 5900 | 28320 | 100 | - | ||
| 170210 | 170 | 210 | 20 | 60 | 6250 | 30000 | 100 | - | ||
| 175195 | 175 | 195 | 10 | 60 | 4900 | 23520 | 100 | - | ||
| 180200 | 180 | 200 | 10 | 30 | 6250 | 30000 | 100 | - | ||
| 180220 | 180 | 220 | 20 | 60 | 6700 | 21160 | 100 | - | ||
| 190210 | 190 | 210 | 10 | 30 | 6800 | 32640 | 100 | - | ||
| 190230 | 190 | 230 | 20 | 60 | 6920 | 33215 | 100 | - | ||
| 200220 | 200 | 220 | 10 | 40 | 4900 | 23520 | 100 | - | ||
| 200240 | 200 | 240 | 20 | 60 | 5250 | 25200 | 100 | - | ||
| 220240 | 220 | 240 | 10 | 40 | 6250 | 30000 | 100 | - | ||
| 220260 | 220 | 260 | 20 | 60 | 6900 | 33120 | 100 | - | ||
| 240260 | 240 | 260 | 10 | 30 | 7950 | 38160 | 100 | - | ||
| 240280 | 240 | 280 | 20 | 60 | 8150 | 39120 | 100 | - | ||
| 260280 | 260 | 280 | 10 | 30 | 7950 | 38160 | 100 | - | ||
| 260290 | 260 | 290 | 15 | 40 | 8300 | 39840 | 100 | - | ||
| 260300 | 260 | 300 | 20 | 60 | 8680 | 41665 | 100 | - | ||
| 300320 | 300 | 320 | 10 | 30 | 10000 | 48000 | 100 | - | ||
| 300330 | 300 | 330 | 15 | 40 | 10250 | 49200 | 100 | - | ||
| 300340 | 300 | 340 | 20 | 60 | 10580 | 50785 | 100 | - | ||
| İnç Ölçüleri Tablosu | Adet | Sepete Ekle | |||||||
|---|---|---|---|---|---|---|---|---|---|
| KAMA Rulman Yatağı No.* |
İnç Ölçüleri | H Modeli masuralar için Cdyn Mukavemet |
|||||||
| d | D | I | Dr | Dr (mm) | Kg | LBS | |||
| 0603/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0603/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/24-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/32-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/40-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/48-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0803/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0804/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0805/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0903/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 0904/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/24-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1906/32-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/36-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/40-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/44-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/48-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/52-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/56-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/64-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/72-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/80-a | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1003/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1004/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1005/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1006/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1006/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1006/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1006/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1102/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1102/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1103/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1103/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1203/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1204/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1205/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1206/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1206/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1206/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1206/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1206/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1304/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1403/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1404/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1405/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1503/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1504/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1602/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1603/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1604/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1065/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/56 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1605/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1606/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1606/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1606/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1606/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1606/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1606/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1608/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1608/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1608/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1608/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1608/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1608/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1708/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1708/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1708/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1708/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1708/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1708/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1803/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/30 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1804/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/56 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1805/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1807/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1807/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1807/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1807/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1807/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1807/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1905/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1905/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1905/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1905/56 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1905/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 1908/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2003/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/26 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2004/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/56 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2005/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2006/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2007/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2008/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2009/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2009/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2009/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2009/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2009/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2009/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2205/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2205/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2205/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2205/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2206/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2208/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2309/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2309/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2309/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2309/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2309/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2309/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2404/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/12 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/19 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/36 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/44 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/56 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2405/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2406/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2406/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2406/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2406/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2406/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2407/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2407/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2407/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2407/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2407/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2407/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/15 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/19 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2408/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2409/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2409/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2409/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2409/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2409/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2605/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/52 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/56 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/60 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2606/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/15 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/19 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2808/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2809/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2809/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2809/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2809/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2809/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/22 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3206/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3208/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3208/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3208/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3208/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3208/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3208/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3210/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3210/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3210/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3210/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3210/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3210/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/18 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/25 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3506/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3610/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3610/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3610/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3610/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3610/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3610/80 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/14 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/20 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/28 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 3806/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/15 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/19 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/24 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 2806/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/16 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/21 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/29 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4207/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4608/23 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4608/31 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4608/32 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4608/40 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4608/48 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
| 4608/64 | 3/8 | 3/4 | 3/4 | 3/16 | 4,76 | 825 | 1820 | - | |
HEMEN TEKLİF ALIN VEYA
İLETİŞİME GEÇİN
