Nominal Rulman Boyutları
Temel

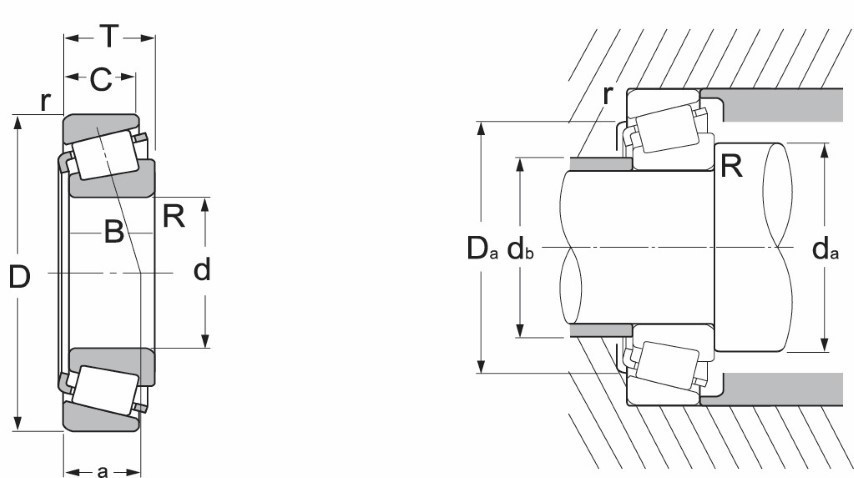

Rulman d D T B C
No
inç inç inç inç inç
LM11749/ 17.4620 39.8780 13.8430 14.605 10.688
LM11710 0.6875 1.5700 0.5450 0.575 0,420
LM11949/ 19.0500 45.2370 15.4940 16.6370 12.0650
LM11910 0.7500 1.7810 0.6100 0.6550 0.4750
M12649/ 21.4300 50.0050 17.5260 18.2880 13.9700
M12610 0.8437 1.9687 0.6900 0.7200 0.5500
M12649A/ 21.4300 50.0050 17.0261 17.7880 13.4700
M12610 0.8437 1.9687 0.6703 0.7000 0.5300
LM12749/ 21.9860 45.2370 15.4940 16.6370 12.0650
LM12710 0.8656 1.7810 0.6100 0.6550 0.4750
LM12749/ 21.9860 45.9740 15.4940 16.6370 12.0650
LM12711 0.8656 1.8100 0.6100 0.6550 0.4750
L44643/ 25.4000 50.2920 14.2240 14.7320 10.6680
L44610 1.0000 1.9800 0.5600 0.5800 0.4200
L44649/ 26.9880 50.2920 14.2240 14.7320 10.6680
L44610 1.0625 1.9800 0.5600 0.5800 0.4200
L45449/ 29.0000 50.2920 14.2240 14.7320 10.6680
L45410 1.1417 1.9800 0.5600 0.5800 0.4200
LM67048/ 31.7500 59.1310 15.8750 16.7640 11.8110
LM67010 1.2500 2.3280 0.6250 0.6600 0.4650
LM48548/ 34.9250 65.0880 18.0340 18.2880 13.9700
LM48510 1.3750 2.5625 0.7100 0.7200 0.5500
L68149/ 34.9880 59.1310 15.8750 16.7640 11.9380
L68110 1.3775 2.3280 0.6250 0.6600 0.4700
L68149/ 34.9880 59.9740 15.8750 16.7640 11.9380
L68111 1.3775 2.3612 0.6250 0.6600 0.4700
JL69349/ 38.0000 63.0000 17.0000 17.0000 13.5000
JL69310 1.4961 2.4803 0.6693 0.6693 0.5315
LM78349/ 34.9880 61.9730 16.7000 17.0000 13.6000
LM78310 1.3775 2.4399 0.6575 0.6693 0.5315
JL68145/ 34.9880 59.9740 15.8750 18.4610 11.9380
JL68111 1.3774 2.3612 0.6250 0.7268 0.4700
329013 29.0000 50.2920 14.2240 17.6000 10.6680
1.1417 1.9800 0.5600 0.6929 0.4200
